2.7mm Galfan Woven Hexagonal Gabion Mesh Basket 8x10cm Aperture

Name: 27mm Galfan Woven Hexagonal Gabion Mesh Basket 8x10cm Aperture
Brand: HBGB
Price: 1 USD

China 2.7mm Galfan Woven Hexagonal Gabion Mesh Basket 8x10cm Aperture wholesale

Brand Name : HBGB

Model Number : GB-002

Certification : ISO 9001

Place of Origin : China

MOQ : 50 PCS

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs per day

Delivery Time : 10-25days

Packaging Details : compacted before packaging, in bundle

Product name : Gabion Mesh Basket

Material : Q195 wire

Surface treatment : galfan finishing

Type : 5%Alu+95% zinc

Wire diameter : popular 2.7mm (2.0-4.0mm)

Hole shape : hexagonal

Aperture : 8 x 10 cm (standard)

Box size : 2x1x0.5m, 2x1x1m, 3x1x0.5m, 4x1x0.2m

Usage : Flood Control Retaining Wall

Packing : bundle to tie with iron wire material

Contact Now

Galfan Wire Woven Type Hexagonal Hole Shape Gabion Mesh Basket

Gabion Mesh Basket Introduction:

Gabion mesh is made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style.Also,we can produce products as customers’ request. Please contact us if necessary!

Gabion Mesh Basket Raw Material:

Product Name	Gabion
Hole Type	Hexagonal
Production process	Three twist / Five twist
Material	GI wire,PVC coated wire,galfan wire
Wire Diameter	2.0mm-4.0mm
Hole Size	60×80mm,80×100mm,100×120mm,120×150mm
Gabion Size	2m×1m×0.5m,2m×1m×1m,3m×1m×0.5m,3m×1m×1m 4m×1m×0.5m,4m×1m×1m,Other sizes can be customized.

Gabion Mesh Basket Applications:

1. Control and guide of water or flood

2. Preventing of rock breaking 3. Keep off dust wall

4. Water and soil protection

5. Port project

6. Roadway protection

7. Bridge protection

8. Strengthening structure of soil

9. Protection engineering of seaside area

Gabion Mesh Basket Specifications:

Mesh Size	Galvanized Gabion( Dia.mm)	PVC Gabion (Inside Dia/Outside Dia.mm)	Max Wide Cut
60x80mm	Φ2.0-2.8	Φ2.0/3.0-2.8/3.8	4300
80x100mm	Φ2.2-3.2	Φ2.2/3.2-3.0/4.0	4300
80x120mm	Φ2.2-3.2	Φ2.2/3.2-3.0/4.0	4300
100x120mm	Φ2.4-3.5	Φ2.4/3.4-3.2/4.2	4300
100x150mm	Φ2.4-3.5	Φ2.4/3.4-3.2/4.2	4300
120x150mm	Φ2.7-4.0	Φ2.7/3.7-3.5/4.5	4300

Normal box size (m)	Mesh size (mm)	No. of diaphragms (no.)	Capacity per box (m3)
1.0x1.0x0.5	50x50 75x75 50x100 100x100	0	0.50
1.0x1.0x1.0		0	1.00
1.5x1.0x0.5		0	0.75
1.5x1.0x1.0		0	1.50
2.0x1.0x0.5		1	1.00
2.0x1.0x1.0		1	2.00
3.0x1.0x0.5		2	1.50
3.0x1.0x1.0		2	3.00
4.0x1.0x0.5		3	2.00
4.0x1.0x1.0		3	4.00

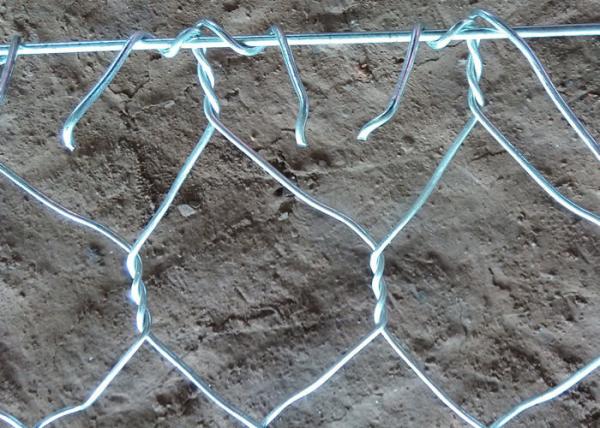

2.7mm Galfan Woven Hexagonal Gabion Mesh Basket 8x10cm Aperture

Packing & loading pictures:

Application:

2.7mm Galfan Woven Hexagonal Gabion Mesh Basket 8x10cm Aperture
